Good-Win Racing Mazda Performance Parts

Wilwood Forged Narrow Superlite 6R Front RX8 Big Brake Kit, GT Slotted 14" Rotor

2004-2011 · Red Caliper

NEW!

RX8 2004-2011 · Brakes


Part Number: 61-1306RX

Year: 2004-2011

Application: Red Caliper

Reg. Price: $1,881.59

Sale Price: $1,699.00

Quantity:

Wilwood Forged Narrow Superlite 6R Front RX8 Big Brake Kit, GT Slotted 14" Rotor
rating (0 Ratings)
rating (0 Ratings)

Thank you. You have rated this product.

Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit, GT Slotted 14" Rotor- Red Caliper

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this 14" big rotor kit. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines.

Kit Features

-Upgrade from OE calipers to Forged Billet Narrow Superlite 6R six piston calipers for either street or track.
-Includes Brake lines
-14" diameter GT slotted rotors.
-Simple bolt-on installation with no modifications required.
-Fully compatible with ABS and OE master cylinder output.

Component Features

FNSL6R Radial Mount Six-Piston Calipers:
-Competition proven forged billet bodies demonstrates superior strength and resistance to deflection and separation under high load.
-Differential bore stainless steel pistons generate high clamping force and balanced pad loading for optimized stopping power and even pad wear. Stainless pistons stay corrosion resistant and inhibit heat transfer from the pads to the caliper body, fluid and seals.
-The internal piston seal-in-bore design adds proven durability with keeping the fluid in and dirt out without the need for external boot seals.
-For more aggressive race applications, calipers can be fitted with our exclusive Thermlock pistons which provide the most effective thermal barrier for minimizing heat transfer from the brake pads to the caliper body, seals, and fluid.
-Spring loaded stainless SRS bridge plates dampen pad noise and protect the caliper bridges from wear.
-Calipers provide easy access to the pads for service, without the need to unbolt the calipers from their mounts.

GT Series Rotor:
GT competition series rotors feature full detail machining with asymmetrical slots in the faces. GT rotors provide the highest degree of durability and longer life for repeated hard braking and high temperature use.

Forged Aluminum GT Mounting Hats:
-Forged aluminum rotor mount hats help reduce weight with the strength to handle the exceptional brake torque delivered by the FNSL6R calipers.
-Black E-coat finish resists corrosion while adding to the aggressive competition look inside the wheel.

Wilwood "Smart Pads":
-FNSL6R kits includes our proven formula BP-10 Smart Pads. BP-10 is a unique composite-metallic compound that provides increased friction, stopping power, and higher fade resistance in a clean and quiet running low dust style pad.

***The calipers in this kit use the 7416 pad shape. Type "7416" into the search box on the upper left of our site to see all the brake pad options we offer that fit this brake kit.***

Radial Mounting Brackets, Hardware and Plumbing:
-Radial mounting provides secure attachment directly to the OE mounts, with two planes of adjustment for precise alignment of the caliper over the rotor. Brackets, premium grade fasteners and alignment shims are included in each kit.
-Jacketed stainless steel braided, DOT approved flexline kits are included with each brake kit.

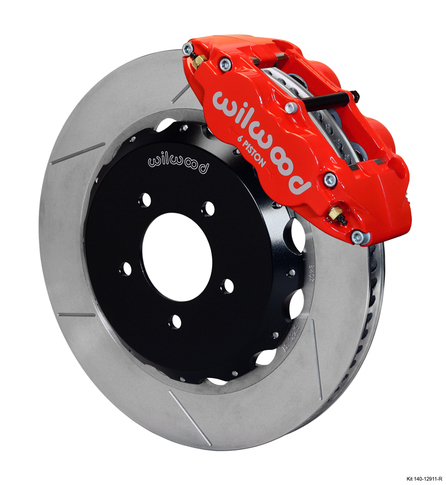

Picture below shows standard version of kit but refer to description above for options like Red Calipers, etc.

*** Product images may differ from actual product appearance ***
