9Lives Racing Front Aero Package for NA/NB

DESCRIPTION

Combo kit includes 9Lives Racing's splitter kit, "sturdy boiis" splitter brackets/ducting, and air dam for the NA or NB Miata. Everything you need to make front downforce to match a rear wing for your track car.

More Downforce = Faster = Lower lap times. Nine Lives front splitter and air dam combined with 64" Big Wang at the rear has ben CFD tested to increase overall downforce by 310%!

Splitter:

2 piece design. Made from 1/2" birch plywood and then coated with tough and ready "Rocket Noze V2 Coating" for years of dependable service without hurting the bank. The process starts with 1/2 plywood, CNC cut pockets to make it feather-light. The CNC continues to radius the edges for smooth transitions and cuts a pocket for your air dam to slide into. The birch is then coated. The same company that coats the splitters also coats rockets for a major missile defense company.

* CNC Cut in America
* Rocket Nose V2 coating is UV resilient and weather tight.
* Excess material removed for featherweight operation.
* Pockets Cut for easy splitter ramp upgrades later.
* Downforce bump "bubble" incorporated design.

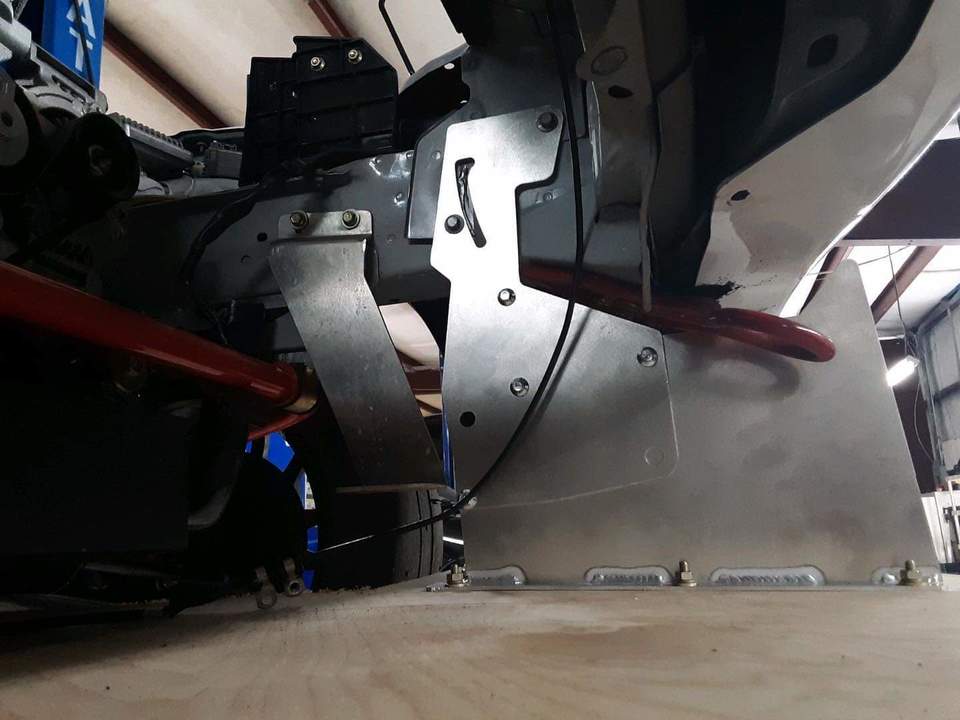

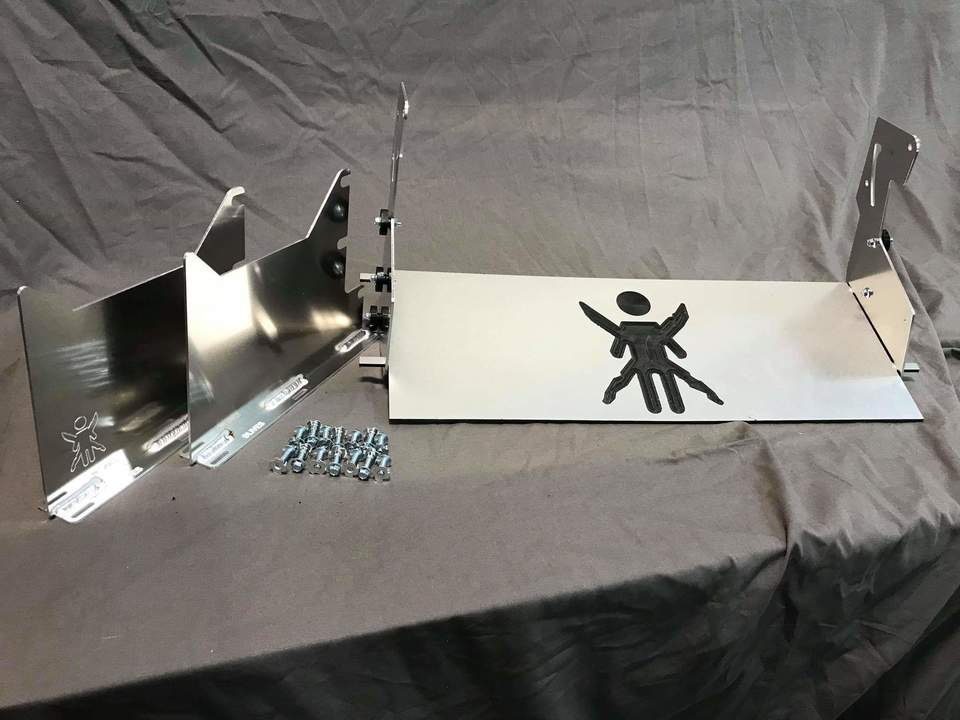

"Sturdy Boiis" Splitter Mounts:

1990-2005 NA / NB Miata Splitter mounts! (Name was chosen by the Trackable Miatas Facebook group)
Words from a race engineer: "To make a car lighter you must make every part do as many jobs as it can". Sturdy boiis are Radiator ducting AND a quick disconnect Splitter Mount all in one.

Notes about bumpers:
Sturdy boiis are built and intended to be used with a splitter, You can keep your OEM bumper if you wish to use the radiator ducting feature. The ducting will fit behind the stock bumper.

* Aluminum construction
* Front horns are set at 4.4 degrees to hold your air dam, and make it legal for NASA racing.
* Quick disconnect, 2 bolt operation. You can replace the bolt with a 0.25" pin to make disconnecting even faster if you wish.
* Radiator ducting included
* Replacement parts ambidextrous for easy spares
* Emergency Break Away - If contact occurs mounts will snap before damaging oem mounting points.

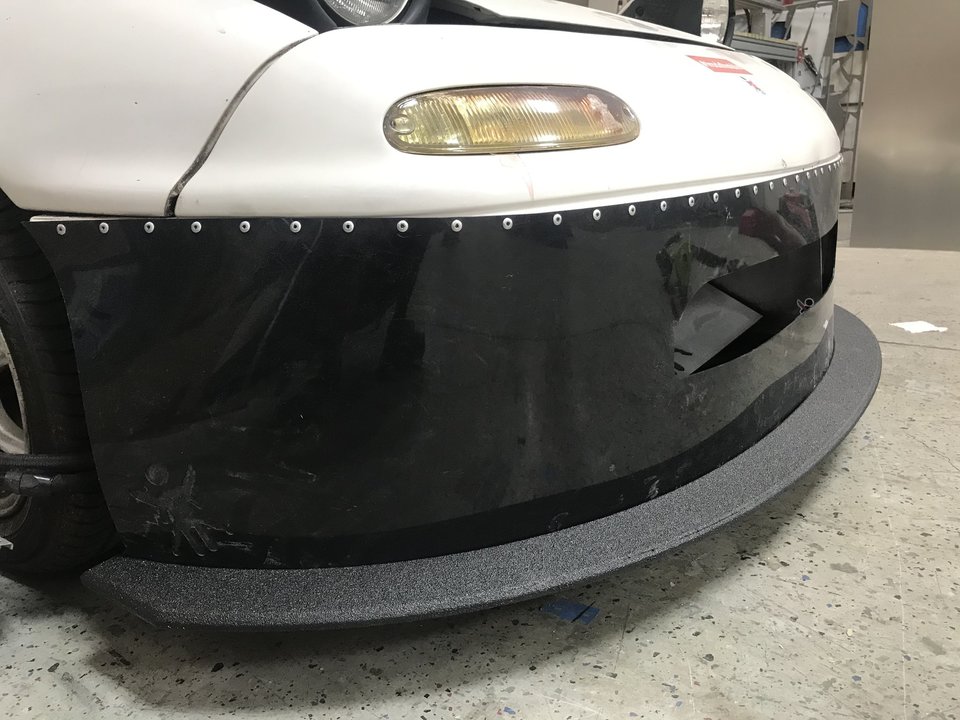

Air Dam

Front air dam for 1990-1997 or 1999-2005 Mazda Miatas. Designed for use with the Nine Lives Racing sturdy boiis bracket/ducting and splitter. * Made from .1250" plastic
* Tri-fold Rivets included
* Standard Cut with 4.5 degree rake (NASA Limit is 5 degrees)
* Long Nose cut with 25.5 degree rake for even more downforce and even less drag.

Splitter Ramps

These ramp inserts install in the splitter and increase the total downforce. Make sure your race series allows this before adding them.

These kits are MADE TO ORDER. Lead times fluctuate thorugh the year, but at the time of writing this 9LR is at 6-8 weeks.
