AP Racing/Essex Radi-CAL Competition Front Big Brake Kit 340mm

DESCRIPTION

Complete Front AP Racing Radi-CAL Competition Brake Kit for the ND Mazda Miata and Fiat 124 Spider.

Features:
- AP Racing CP9449 Radi-CAL four piston calipers
- 340x28mm (13.4" x 1.1") 60 vane heavy duty AP Racing discs
- Saves 6 lbs of unsprung weight from the nose vs. OEM brakes, despite being considerably larger
- Every component designed to resist the heat of extended track sessions
- Pistons sized properly to allow for seamless integration with OEM master cylinder, ABS system, and OEM rear brakes
- Perfect for high horsepower, forced-induction cars
- Designed to work with OEM rear brakes

Complete Kit Installation Instructions AT THIS LINK

Wheel Clearance:
Does NOT clear factory 17x7 wheels without a spacer. A 15mm spacer is required to for factory 17x7s.
Fits most aftermarket wheels that have substantially more brake clearance than factory wheels. To confirm clearance with the wheels you have, you can print out the brake template and check it on your wheels.
LINK TO BRAKE TEMPLATE

See below list for which wheels we have checked ourselves on this brake kit:
17x8 Enkei TS-10: OK
17x8 Konig Hypergram: NO (would need ~10mm spacer)
17x9 Konig Hypergram: OK
17x9 Advanti Storm S1: OK

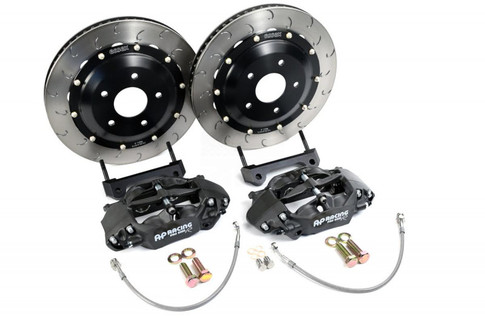

WHAT'S IN THE BOX?
- One pair AP Racing CP9449 Radi-CAL Pro5000R racing calipers
- One pair 340x28mm AP Racing CP6565 heavy duty J Hook racing discs, with fully floating 6061 hard anodized aluminum hats and attachment hardware
- One pair caliper mounting brackets and hardware
- One pair Spiegler Stainless Steel Brake Lines with abrasion resistant coating
- Detailed installation instructions
- Brake pads are NOT included by default with this system. Racing brake pads are a highly personal choice. Rather than inflate the price with a set of pads you may not want, AP Racing prefers to allow you to you to choose the pads that best suit your needs/wants. You can type "CP9449" into the search box at the top of our site to find all of the pads available for this caliper, and add the ones you want to your cart along with this brake kit.
- Pad Tension Clips (frequently referred to as anti-rattle clips) are NOT included with AP's Competition Kits, but they do offer them as an option if you're concerned about NVH. One of the great benefits of the AP Racing calipers is that they are designed to accommodate pads from a wide range of manufacturers. Each manufacturer builds their pads with specifications that are slightly different. As such, pads from different manufacturers, or even from different batches, won't always fit in the calipers in exactly the same manner. Some pads are a snug fit, while others may rattle around and produce noise. The Essex Designed Pad Tension Kit is designed to dramatically reduce pad movement inside the caliper, along with just about all resulting noise. Search part number "61-3232" on our site to find those. Please note that each caliper requires one Pad Tension Kit. If you need enough tension blocks for both of your calipers, you need to order two of these kits!

RADI-CAL
Radi-CAL is a term used to describe AP Racings patented asymmetrical brake caliper design. Radi-Cal technology is grounded in Computer Aided Design (CAD) and Finite Element Analysis (FEA), and allows for organic, alien-looking designs that are a radical departure from conventional caliper designs of the past. Radi-CAL's are widely considered the pinnacle of current brake caliper technology. Since their inception in 2007, these revolutionary calipers have amassed a lengthy string of race victories at all levels of professional motorsport, while redefining brake performance expectations. For more details on the design concept and what these calipers have achieved in professional racing, click the following link to read about The AP Racing Radi-CAL Story.

DISCS- AP RACING COMPETITION J HOOK
- Exclusive AP Racing J Hook slot pattern on the outer face, and curved directional curved internal vanes for superior airflow and cooling.
- Two-piece Floating Design with billet 6061 aluminum Hat, featuring anti-knockback spring clips.
- Complex metallurgy developed through 50+ years of experience.

Brake Pads in A Commonly Available Shape
The basic pad shape for the CP9449 caliper was created by AP Racing many years ago, and is used by a wide range of racing calipers today. They're available in just about every popular racing compound on the market. That means you'll never end up in a pinch without pads. Type "CP9449" into the search box at the top of our site to find all of the pads available for this caliper, and add the ones you want to your cart along with this brake kit. ***Pads are NOT included with this kit***
