PART NUMBER: 61-2806

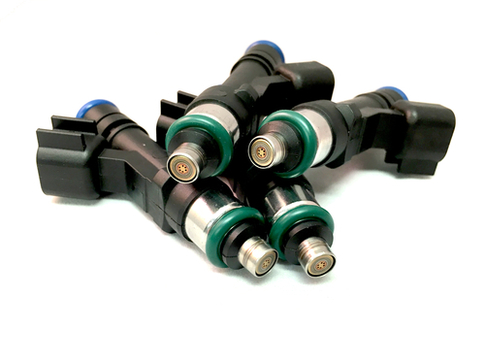

These high performance, high capacity, long body EV14 injectors are plug and play for the 2006-2015 Mazda Miata (NC)
Cutting edge Bosch EV14 technology
Flow matched within +/-1% static and dynamic (2ms pulse, idle conditions) flow rates for a smooth idle
Multi-hole tip for superb atomization
Works with multiple fuel types, including E85
Plug and Play for NC miatas
NOTE: "Plug and Play" means these plug right in to the factory fuel injector connectors, no wiring needed. This does NOT mean you can just run them on the factory ECU tune. You MUST re-tune for larger injectors.
These EV14 injectors are the go-to choice for high performance naturally aspirated builds, both 2.0L and 2.5L on either gas or E85.
4x 380cc (at 3 bar) Flow Matched EV14 Injectors 1x dielectric grease Bosch Type IV Fuel Injector Info:
This is a high performance, high volume fuel injector. Fuel delivery is from a multi-hole disc which incorporates a dual cone-shape spray pattern for maximum fuel atomization for modern single-valve and multi-valve engines. These injectors will function at fuel rail pressures of up to 7 bar.
Length: 60mm O-ring to O-ring Diameter: 14 mm Resistance: 14.5 Ohms (high resistance) Electrical connector type: USCAR, EV6
