Direct replacement for the factory heat shield. The transmission must be removed to install.

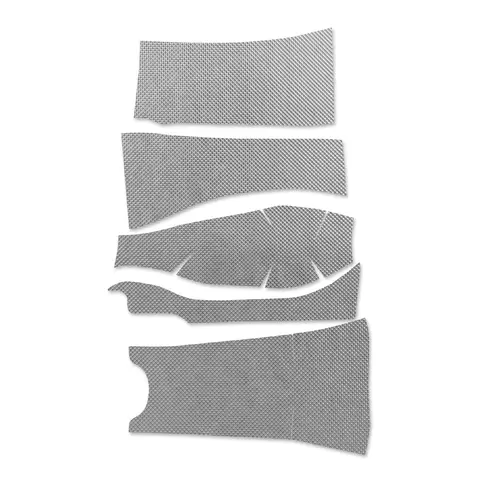

The kit consists of a high-heat resistant material (Floor and Tunnel) only 3/16" thick for minimal clearance and rated to handle 1750 F of direct heat. The material is CNC cut into five individual pieces that are applied to and fit together above the transmission to reflect heat from entering through the floor. Each piece is backed with an aggressive adhesive for a simple peel, position and stick application. Also included are two packets of adhesion promoter, one roll of 1-1/2" w x 15ft heat reflective sealing tape to cover seams and detailed installation instructions.
Reduce interior heat for an improved & cooler driving experience
Light weight precision die cut pieces for a perfect fit
Withstands direct heat up to 1750 F (954 C)
Super strong, self-adhesive backing
Peel, position & apply for an easy and simply installation
Replaces missing or damaged factory heat shield
Note: The finished result depends on the quality of the install. The adhesive will not stick well to rough or dirty surfaces. You must clean things well before applying the shields if you want it to stick and last.
Pics below are of the prototype for this kit, so there may be some small differences.
